Steel 4 Ton Roll Back Flatbed Wrecker Platform Length 5.6m High Strength

Product Categories
Hubei iTruck Import and Export Trading Co., Ltd
Contact Now

Steel 4 Ton Roll Back Flatbed Wrecker Platform Length 5.6m High Strength

Brand Name : iTruck

Place of Origin : Hubei, China

MOQ : 1

Price : $5,200.00/units

Supply Ability : 30 sets per month

Delivery Time : 15 days

Packaging Details : Nude, covered with film protection

Product name : Rallback Truck Bed

Dimensions (L x W x H) (mm) : Customs made

Condition : New

WheelBase : As required

Subframe : Equipped

Main Winch : 4 tons

Underlift : 3 sections, 3 tons

Underlift Tow Rating : 6 Tons

Operation : Both sides manual

Remote Control : Optional

Warranty : 1 Year

Contact Now

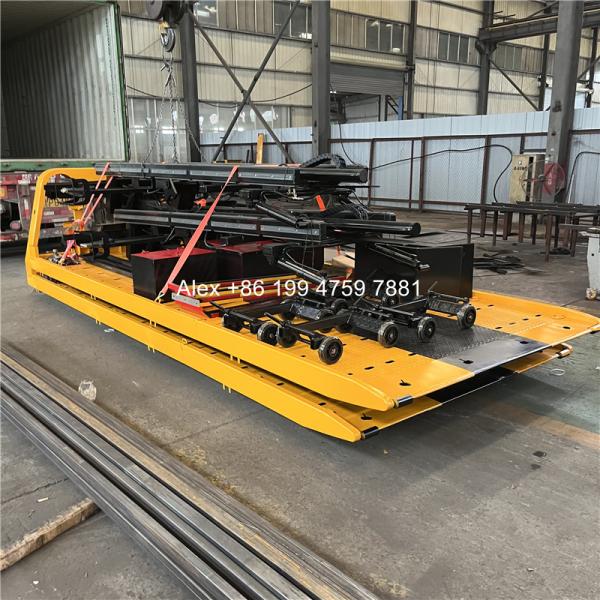

4 TONS FLATBED WRECKER TRUCK BODY ROLLBACK WRECKER PLATFORM
Product Description

The rallback / slide and tilt truck bed / wrecker bed is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.

Main Features
1. Bed Length 5.6 m. Capacity 4 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.
Specs
4 Tons Slide Type Tilt Tray
General Settings Color

Customizable, electrophoresis painting

is optional and extra USD400
Winch Capacity 4 tons
Lift Capacity 4 tons
Extension Capacity 4 tons
Underlift Capacity 4 tons
Platform Material Q235B, 4mm thick
Platform Type Checkered
Platform Dimension 5600 x 2300 mm (customizable)
Wireless Remote Control Optional
Subframe with Underlift Match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
Sides Lights 8 pcs
Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
Bed Lift Cylinder with Seat 2 pcs
Underlift lift Cylinder 2 pcs
Underlift Extension Cylinder 1 pcs
Hydraulic Winch 1 pcs
Hydraulic Pump 1 pcs
Hydraulic Multi Way Valve 1 pcs
Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
Hydraulic Hose 1 set
Hydraulic Hose Containment 1 set
Hose Sleeve 1 pcs
Manual Control with Stainless Steel Seat 2 sets (on both sides)
Oil Tank 1 pcs
Accessories Auxiliary Wheels 2 pcs
Straps 4 pcs
Toolbox 2 pcs
Wheel Grids 2 pcs
L arms 2 pcs
Fence 2 pcs
Mudflap 2 pcs
Lamp Frame 1 pcs
Tow Chain 1 pcs
Frame and Lights Bolts 1 set
Toolbox and Fence Brackets Square Tube 1 set

Steel 4 Ton Roll Back Flatbed Wrecker Platform Length 5.6m High Strength
